ΦΑΡΟΣ ΠΕΡΙΣΤΡΕΦΟΜΕΝΟΣ SH2TP QLIGHT

[Σύνδεση για προβολή τιμής]
SH2TP
Ζήτηση προσφοράς

Heavy Duty Bulb Rotating Signal Beacons for Marine and Heavy Industry Applications
Weatherproof Revolving Beacons / Visual Signal Alarms
Bulb Revolving TypeIP66-20℃ ~ +50℃
  • Voltage

    DC:12V,24VAC:110V,220V

  • Dimension

    Lens Diameter : Ø138 Height : 198 Length : 250

  • Materials

    Lens-PC Housing-Al

  • Protection rating

    IP66

  • Certificate

Brand:
QLIGHT
Βαθμός Στεγανότητας:
  • IP66
Τάση:
  • 220VAC

SH2TP (SH2T_catalog.pdf, 1,250 Kb) [Λήψη]

    • Product Feature

      • Aluminum housing and polycarbonate lens material provides excellent impact resistance under seismic conditions
      • Excellent hermetic structure that blocks water and dust
      • Terminals located inside the terminal box
      • Excellent light diffusion effect with multi faced reflector
      • Adopts a special power transmission system that reduces noise and wear
      • Revolving speed : 120-140RPM
      • Standard housing color : MUNSELL No. 7.5BG 7/2
      • Materials : Lens-PC, Housing-Al, Protection cage-STS316L, Reflector-Heat resistant ABS, Bracket-STS316L
      • Ambient operation temperature : -20°C to +50°C
      • Standard housing color : MUNSELL No. 7.5BG 7/2
      • Cable entry :1/2″PF
      • Protection rating : IP66
      • Certificates : CE
Product Specifications

Model number Voltage Current Bulb Certificates Color
Spec Standard Parts no

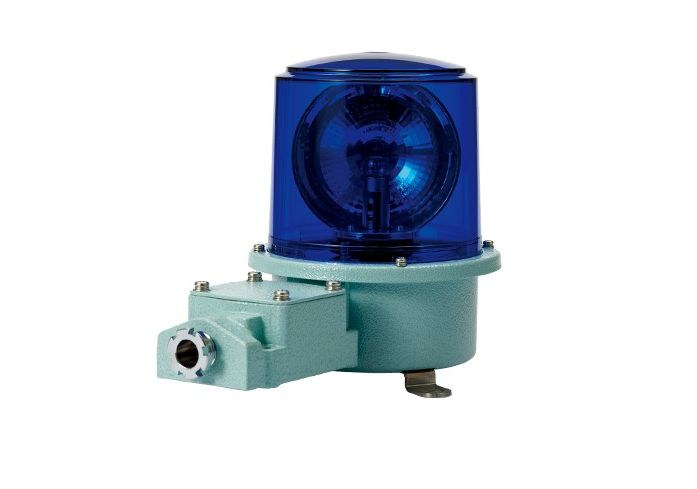

SH2T

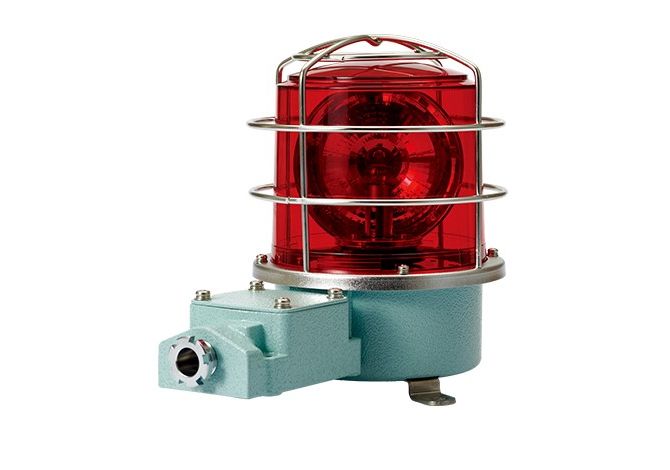

SH2TP
DC12V 1.55A 12V15W G23 15S 17

 R-Red
 A-Amber
   G-Green
 B-Blue
DC24V 850mA 24V15W G23 15S 18
AC110V 200mA 12V15W G23 15S 17
AC220V 100mA 12V15W G23 15S 17
