5 Amp Battery Charger, Battery Maintainer, and Battery Desulfator

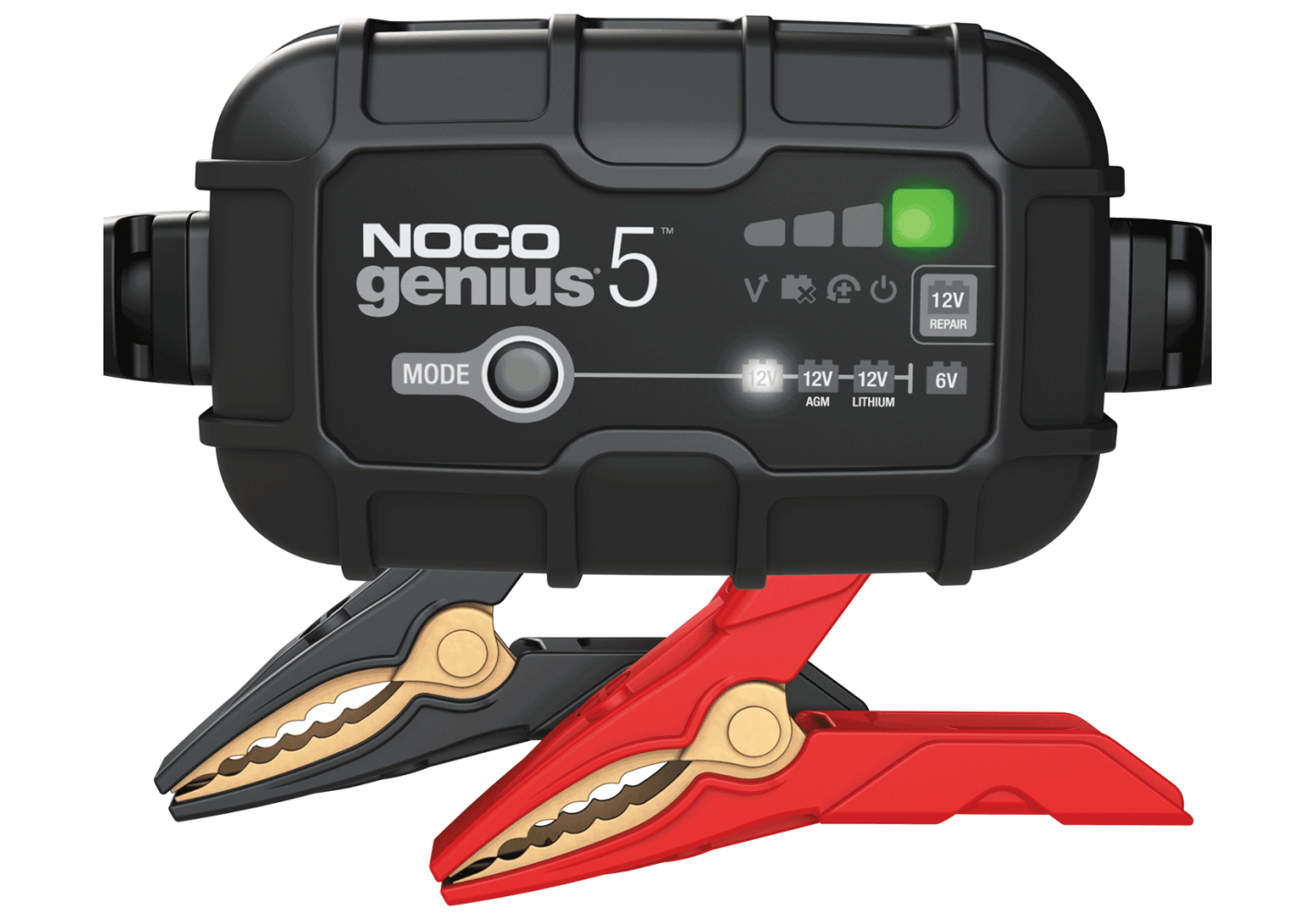

Introducing the new GENIUS5, one of the most powerful, energy efficient, highest performing, and compact chargers. The GENIUS5 is a 6-volt and 12-volt battery charger, battery maintainer, and battery desulfator rated at 5 Amps for automotive and marine lead-acid batteries, and deep cycle batteries, including open-cell, gel, absorbed matrix (AGM), and sealed batteries, plus lithium-ion batteries.
Meet the GENIUS5 - Similar to our G3500 charger, just better. It's 34% smaller and delivers 43% more power. And it's simpler and easier to use than ever before.
Do more with Genius - It's designed for 6V and 12V lead-acid batteries used in automotive and marine, and deep-cycle batteries, including most open-cell, gel, absorbed-matrix (AGM) and sealed-cell batteries, plus lithium-ion batteries.
Enjoy precision charging - A built-in thermal sensor detects ambient temperature and adjusts charging to eliminate the possibility of overcharging in hot climates and undercharging in cold climates.
Charge Dead Batteries - Charges dead batteries as low as 1V. Or use the new Force mode that lets you take control and start charging dead batteries that have reached zero volts.
Simple to install and use - Plug-in, connect to the battery, select a charging mode, and start charging your battery. A fully automatic battery charger for worry-free use all year round.
Restore your battery - Detects sulfation and acid stratification and restores lost performance for stronger engine starts and longer battery life.
Compatible with all types of vehicles - Charge and maintain cars, motorcycles, lawn mowers, ATVs, tractors, trucks, SUVs, boats, classic cars, sports cars, and more - whatever you can think of.
Technical Specifications

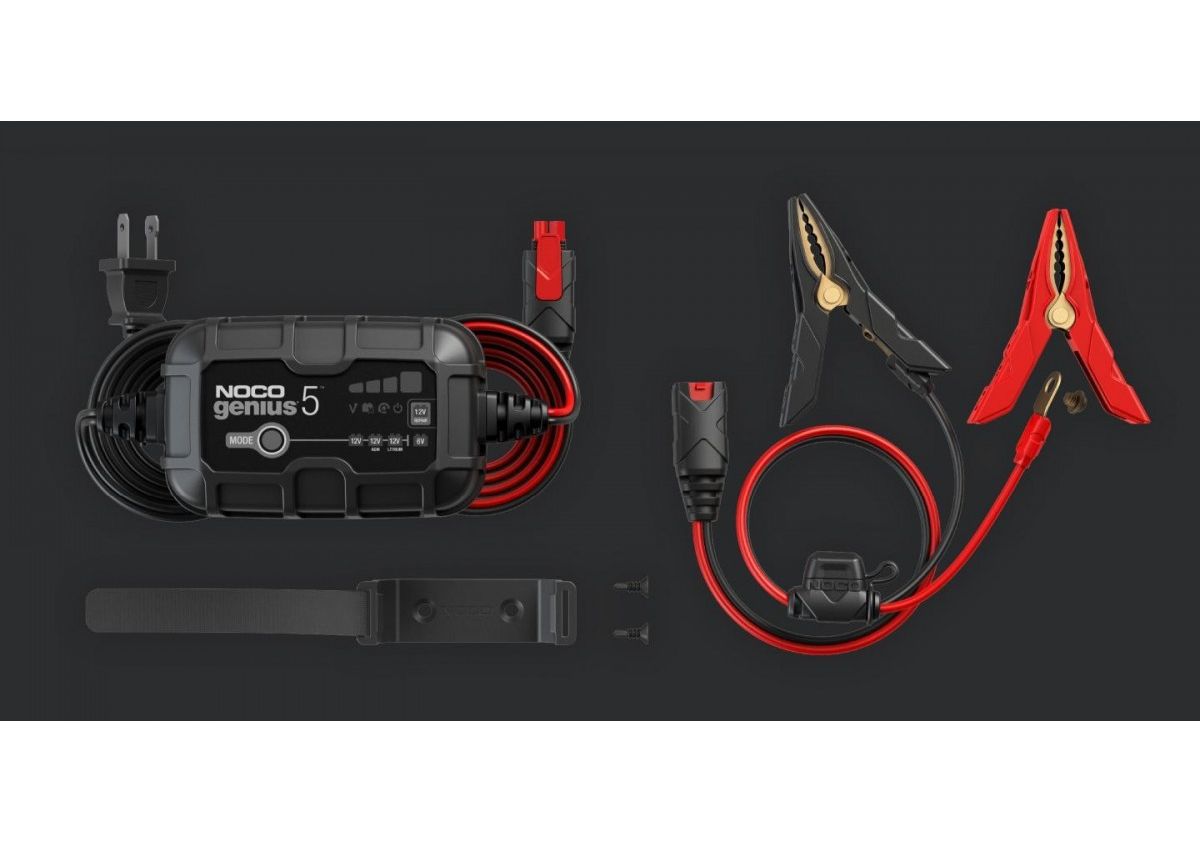

What's in the Box
GENIUS5 Battery Charger w/ Interchangeable Plug
Tweezers w/ Integrated Grommets

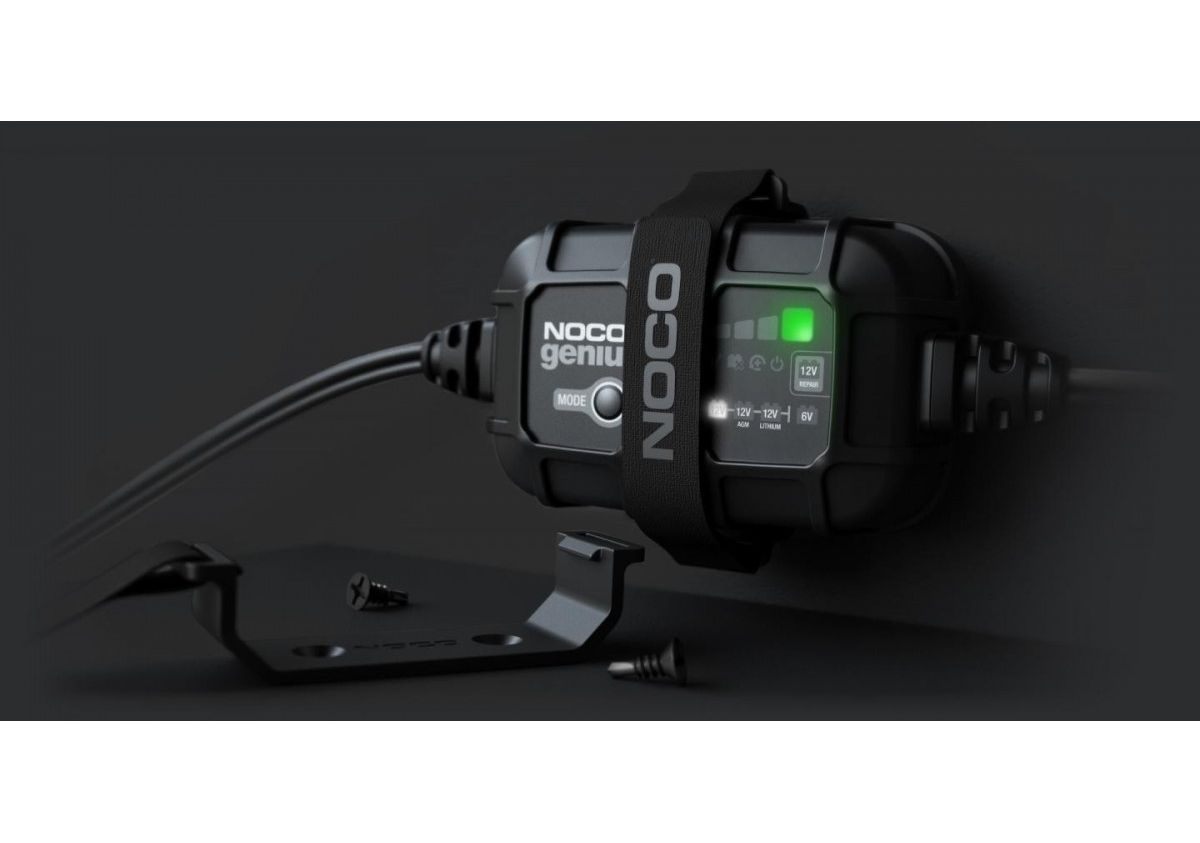

Mounting/Strap Arm
(2) Sheet Metal Screws
User Manual and Warranty Information
Operational Requirements
Line Voltage: 120V to 240V AC
Frequency: 50Hz to 60Hz
Operating Temperature: -4° to 104° F (-20° to 40° C)
Storage Temperature: -22° to 140° F (-30° to 60° C)
Relative Humidity: 0 to 95%, non-condensing
Charging
Current: 5 A DC
Voltage: 6V, 12V
Chemistry: Lead-Acid and Lithium
Types: Open, Gel, Sealed, CA (Crank Amp Metering), EFB (Enhanced Open), AGM (Absorbed Gel), Lithium
Capacity Range: Up to 120 Ah
Maintenance: All Battery Sizes
Power
Consumption: 75 Watts (Max)
Efficiency: 86% (120VAC / 230VAC)
Protection
IP Rating: IP65
Safety
Short Circuit: Yes
Open Circuit: Yes
Overheating: Yes
Overcharge: Yes
Spark Protection: Yes
Reverse Polarity: Yes
Size
Height: 4.6 inches (117 mm)
Width: 2.9 inches (74 mm)
Depth: 1.9 in (48 mm)
Weight: 1.5 lb (0.68 kg)
Cable Management
DC Cable Length: 77.6 in (197 mm)
DC Cable Gauge: 16 AWG
DC Fuse Size: 10 A Micro Blade Fuse
AC Cable Length: 71.7 in (182 cm)
AC Cable Gauge: 18 AWG
Oil, Gas, Grease, Water, Chemicals, UV, Abrasion Resistant
Introducing the new GENIUS5, one of the most powerful, energy efficient, highest performing, and compact chargers. The GENIUS5 is a 6-volt and 12-volt battery charger, battery maintainer, and battery desulfator rated at 5 Amps for automotive and marine lead-acid batteries, and deep cycle batteries, including open-cell, gel, absorbed matrix (AGM), and sealed batteries, plus lithium-ion batteries.
Meet the GENIUS5 - Similar to our G3500 charger, just better. It's 34% smaller and delivers 43% more power. And it's simpler and easier to use than ever before.
Do more with Genius - It's designed for 6V and 12V lead-acid batteries used in automotive and marine, and deep-cycle batteries, including most open-cell, gel, absorbed-matrix (AGM) and sealed-cell batteries, plus lithium-ion batteries.
Enjoy precision charging - A built-in thermal sensor detects ambient temperature and adjusts charging to eliminate the possibility of overcharging in hot climates and undercharging in cold climates.
Charge Dead Batteries - Charges dead batteries as low as 1V. Or use the new Force mode that lets you take control and start charging dead batteries that have reached zero volts.
Simple to install and use - Plug-in, connect to the battery, select a charging mode, and start charging your battery. A fully automatic battery charger for worry-free use all year round.
Restore your battery - Detects sulfation and acid stratification and restores lost performance for stronger engine starts and longer battery life.
Compatible with all types of vehicles - Charge and maintain cars, motorcycles, lawn mowers, ATVs, tractors, trucks, SUVs, boats, classic cars, sports cars, and more - whatever you can think of.
Technical Specifications
What's in the Box
GENIUS5 Battery Charger w/ Interchangeable Plug
Tweezers w/ Integrated Grommets
Mounting/Strap Arm
(2) Sheet Metal Screws
User Manual and Warranty Information
Operational Requirements
Line Voltage: 120V to 240V AC
Frequency: 50Hz to 60Hz
Operating Temperature: -4° to 104° F (-20° to 40° C)
Storage Temperature: -22° to 140° F (-30° to 60° C)
Relative Humidity: 0 to 95%, non-condensing
Charging
Current: 5 A DC
Voltage: 6V, 12V
Chemistry: Lead-Acid and Lithium
Types: Open, Gel, Sealed, CA (Crank Amp Metering), EFB (Enhanced Open), AGM (Absorbed Gel), Lithium
Capacity Range: Up to 120 Ah
Maintenance: All Battery Sizes
Power
Consumption: 75 Watts (Max)
Efficiency: 86% (120VAC / 230VAC)
Protection
IP Rating: IP65
Safety
Short Circuit: Yes
Open Circuit: Yes
Overheating: Yes
Overcharge: Yes
Spark Protection: Yes
Reverse Polarity: Yes
Size
Height: 4.6 inches (117 mm)
Width: 2.9 inches (74 mm)
Depth: 1.9 in (48 mm)
Weight: 1.5 lb (0.68 kg)
Cable Management
DC Cable Length: 77.6 in (197 mm)
DC Cable Gauge: 16 AWG
DC Fuse Size: 10 A Micro Blade Fuse
AC Cable Length: 71.7 in (182 cm)
AC Cable Gauge: 18 AWG
Oil, Gas, Grease, Water, Chemicals, UV, Abrasion Resistant
