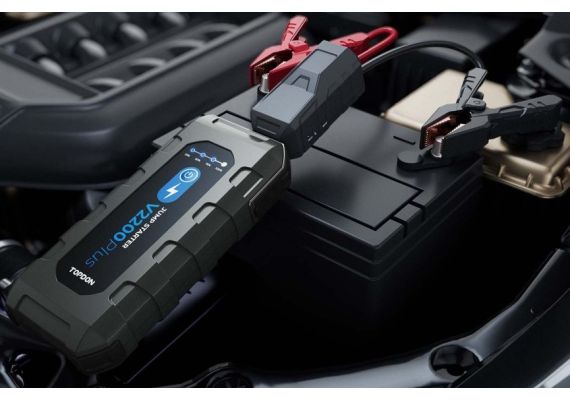

V2200PLUS Jump Starter and Battery Tester
Emergency Jump Starting, Not Dead Battery Jump Starting
The V2200Plus is a 2-in-1 jump starter and battery tester that takes care of the unexpected.
It offers up to 35 jumps on a full charge, smart clamps to protect against common safety hazards, and a 300 lumen LED flashlight. A built-in Bluetooth module supports 12V battery testing with an app that pairs via Bluetooth.
This gives you access to jump start and battery test reports so you can replace a battery before it dies.
The V2200Plus can even act as a charging hub for small devices. Take the V2200Plus with you wherever you drive, so you’re prepared for anything.
We have made significant improvements to our clamps to better secure them to the battery terminals, ensuring increased reliability and stability. During the transition period, you may receive new or old clamps.
Jumpstart all 12V vehicles
The power and high number of starts that the starter allows allows you to easily jumpstart most passenger vehicles on the road.
Up to 8L Gasoline Engines
Up to 6L Diesel Engines
Up to 35 starts *With a full charge
200A Peak Current
Starting capacity may vary depending on the vehicle engine and battery power.
Boosting dead or damaged batteries
Use the boost function for batteries that are not easy to start. TOPDON V2200Plus can start your vehicle with the BOOST boost function, even if the battery voltage is zero.
• Simply press and hold the BOOST button for 1 second.
• Start your vehicle within the next 30 seconds
Test Lead-Acid Batteries via App
Use the app to perform detailed battery tests before deciding to replace your battery. Analyze a battery’s voltage, health, and state of charge with load tests. Perform cranking tests to track cranking times and voltages. The testing capabilities don’t stop there. Check cold cranking amps with rated CCA and overall battery health to know everything about a 12V battery.
Charging Tests: Charged Voltage
Crank Tests: Cranking Time Test and Cranking Voltage Test
Battery Tests: CCA Test, Nominal CCA and Battery Health
Real-time Voltage Test
It functions as a digital voltmeter and graphically displays changes in battery charging, discharging and cranking voltage.
Report Generation
Permanently stores all test results and battery data. Whether you are a professional performing maintenance and documentation tasks, or a car enthusiast keeping a record of your batteries, we are sure you will appreciate the ability to have test results available whenever you need them.
6 Safety Features
A host of safety features are included. The V2200Plus protects users from electrical hazards, including sparks from contact with the cable clamps. The tools also feature the renowned robustness of TOPDON’s JumpSurge series. Resistance to drops, dust and water makes the tool reliable in any conditions.
• Reverse connection
• Reverse charging
• Short circuit
• Overvoltage
• High temperature rise
• Over discharge
LED flashlight
In any emergency situation, a powerful flashlight is always useful. The V2200Plus features a 300 Lumen LED flashlight to see in the dark and send signals for help. Choose between a constant beam of light, a fast-changing strobe or a slow SOS mode to send signals for help.
Power your essential devices
Fully charge most electrical and electronic devices within an hour! Charge smartphones, tablets, cameras, Kindles, speakers, tire inflator, and more!
Type C: PD60W 20V/3A, 15V/3A, 12V/3A, 9V/3A, 5V/3A
USB1: QC18W, 12V/1.5A, 9V/2A, 5V/3A
USB2: QC18W, 12V/1.5A, 9V/2A, 5V/3A
DC: Max. 16.8V/10A
Brands:
TOPDON
Mini USB Input (A): 0
USB Output (A): 0
12V Voltage: Yes
Compatible with engines: Gasoline and diesel
Starting capacity of gasoline vehicles up to and cubic capacity (CC): 0
Starting capacity of diesel vehicles up to and cubic capacity (CC): 0
Starting Ampere (Peak) (A): 0
Battery Capacity (Watt-Hour): 0
LED Flashlight (Lumens): 0
Total length (mm): 0
Total width (mm): 0
Total height (mm): 0
Weight (kg): 0
Insulation: 0
USB Output (A): 0
12V Voltage: Yes
Compatible with engines: Gasoline and diesel
Starting capacity of gasoline vehicles up to and cubic capacity (CC): 0
Starting capacity of diesel vehicles up to and cubic capacity (CC): 0
Starting Ampere (Peak) (A): 0
Battery Capacity (Watt-Hour): 0
LED Flashlight (Lumens): 0
Total length (mm): 0
Total width (mm): 0
Total height (mm): 0
Weight (kg): 0
Insulation: 0
