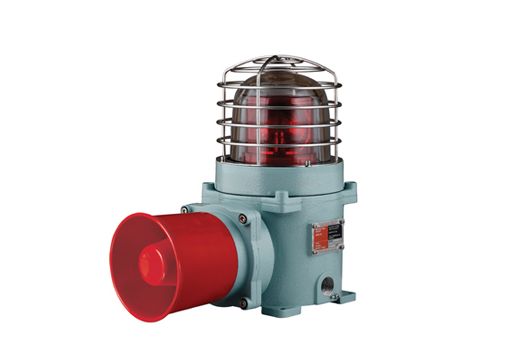

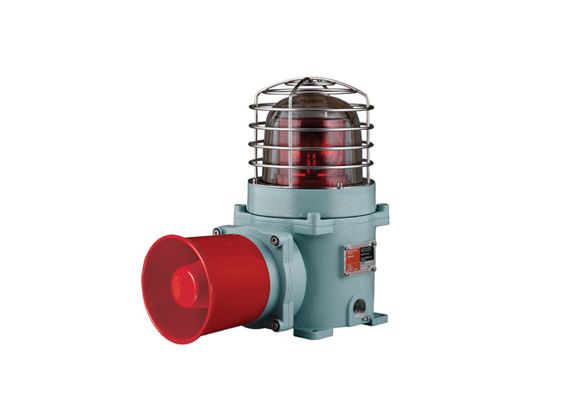

Explosion Proof Signal Beacon and Max 118dB Electronic Sounder Combinations(Telephone Initiated) Max.118dB
- Product Feature
15 Built-in Sounds (Max.118dB at 1m), 5 Customizable voices (110-115dB at 1m)
- Voltage
DC:24V│AC:120V,230V
- Dimension
Cage Diameter : Ø167 │Height : 333 │Length : 327
- Materials
Lens-Tempered glass │Housing-Al
- Protection rating
Ex db IIC T6 Gb│IP66
- Certificate
Product Feature
- Large explosion proof warning light and electric horn combinations
- Telephone Initiated Signal beacon triggers built-in alarm sound that is activated by 25Hz Telephone Ring Signal
- Highly noticeable Telephone alarm in noisy environment
- Telephone line(2 LINE) is connected to PSTN telephone line
- A variety of light sources and sound selections to fit your sophisticated application needs
- Aluminum housing provides excellent durability
- Fully enclosed structure with protection rating of IP66
- Integrated housing and terminal box model
- Rated voltage of Telephone line stand-by : 45VDC to 55VDC
- Rated voltage of Telephone line in operational : AC25V to AC120V, Frequency 15-55Hz
- Excellent diffusion effect with special multifaceted reflector
- Revolving speed : 120-140RPM
- Sound volume : Max 118dB at 1m(Volume adjustable)
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2″ NPT
- Materials : Lens-Tempered glass, Filter-PC, Housing-Al, Protection cage-STS316L, Reflector for LED type-PC/Reflector for bulbt ype-Heat resistant ABS
- Certificates : IECEx, ATEX
- Protection rating : IECEx - Ex db IIC T6 Gb, IP66
ATEX -
II2G Ex db IIC T6 Gb, IP66 - Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C
Brand:
QLIGHT
Απόχρωση:
- AMBER
- RED
Τάση:
- 220V
-
- Product Specifications
Sound Tone Combination of Standard ProductModel
numberVoltage Current Bulb Sound pattern and
volumeCertificates Weight Color Spec Standard Parts no SESA-TI DC24V 1.45A 24V15W G23 15S 18 · WS-5 Warning sounds : Max.118dB
· WP-5 Special warning sounds: Max.118dB
· WM-5 Melodies : Max.118dB
· WA-5 Alarms : Max.116dB
· WV-5 Customizable voices : 110-115dB8.57kg
R-Red
A-Amber
G-Green
B-BlueAC120V 370mA 12V15W G23 15S 17 9.27kg AC230V 190mA 12V15W G23 15S 17 Sound Category Sound Tone Sound 5 Warning Sounds Fire.A-ANG
Emergency WA-U(Yelp)
Ambulance PI-PO(Hi-low)
Machinery Fault
High Expansion5 Special Warning Sounds (1st Group) Fire.A-ANG
Abandon Alarm
Machunery Fault
High Expansion
7 Short PI. / 1 Long5 Melodies Sweet Home
For Elise
Cuckoo's Waltz
Piano Sonata
Turkish March5 Alarms Beep Intermittent
Door Chime
Phone Ring
PI.PI.PI. Short Interval
Tripping Beat5 Customizable voices Customized sound
- Product Specifications
