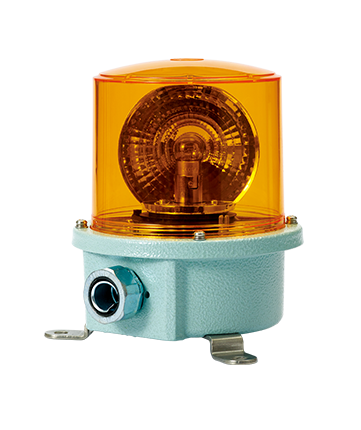

HEAVY-DUTY BULB REVOLVING WARNING LIGHT SH1P

The price is shown only for registered users
SH1P
Availability : Request for offer
  • Product inquiry
Heavy Duty Bulb Rotating Signal Beacons for Marine and Heavy Industry Applications
Weatherproof Revolving Beacons / Visual Signal Alarms
  • Voltage

    DC:12V,24VAC:110V,220V

  • Dimension

    Lens Diameter : Ø119 Height : 168

  • Materials

    Lens-PC Housing-Al

  • Protection rating

    IP66

  • Certificate

  • Aluminum housing and polycarbonate lens material provides excellent impact resistance under seismic conditions
  • Excellent hermetic structure that blocks water and dust
  • Terminals located inside the product
  • Excellent light diffusion effect with multi faced reflector
  • Adopts a special power transmission system that reduces noise and wear
  • Revolving speed : 120-140RPM
  • Standard housing color : MUNSELL No. 7.5BG 7/2
  • Materials : Lens-PC, Housing-Al, Protection cage-STS316L, Reflector-PC, Reflector-Heat resistant ABS, Bracket-STS316L
  • Ambient operation temperature : -20°C to +50°C
  • Standard housing color : MUNSELL No. 7.5BG 7/2
  • Cable entry :1/2″PF
Brands:
QLIGHT
Color:
  • BLUE
  • AMBER
  • GREEN
  • RED
  • YELLOW
IP Code:
IP 66
Voltage:
  • 24V & 220V

SH1 (SH1.png, 134 Kb) [Download]

Model numberVoltageCurrentBulbCertificatesColor
SpecStandardParts no
SH1
SH1P
SH1T
SH1TP
DC12V 1.545A 12V15W G23 15S 17


 R-Red
 A-Amber
  G-Green
 B-Blue
DC24V 0.766A 24V15W G23 15S 18
AC110V 0.204A 12V15W G23 15S 17
AC220V 0.102A 12V15W G23 15S 17
