CXH-101P DOUBLE-DECK NAVIGATION SIGNAL LIGHT

Η τιμή φαίνεται μόνο για εγγεγραμμένους χρήστες
CXH1-101P
Διαθεσιμότητα : Σε απόθεμα
  • Product inquiry

The scope of application

Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation.

Products characteristic

1.The shell is made of high-strength engineering plastic PA+GF, the lampshade adopts injection of PC, lens hood adopts good quality stainless steel.

2.The signal lights have the whole seal structure, it is waterproof under the bad environment.

3.The signal lights uses exclusive LED illuminant which accords with ship rules and reguations, More energy effi cient, longer working life.

4.The signal lights can work normally under the temperature -30℃ ~55℃ .

Voltage

24V/110V/220V

Power

 2*60W/2*65W

Lamp holder

P28S

Protection class

IP56

Cable outside diameter

Φ12-Φ13

:
  • 24/110/220

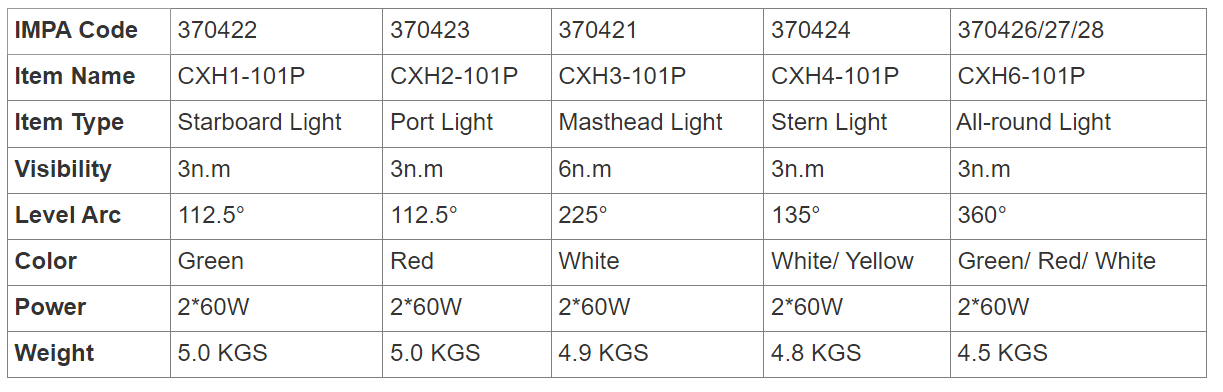

IMPA Code

Name

Model

Visibility

Level arc

Color

370422

Starboard light

CXH1-101P

3n.m

112.5°

Green

370423

Port light

CXH2-101P

3n.m

112.5°

Red

370421

Masthead light

CXH3-101P

6n.m

225°

White

370424

Stern light

CXH4-101P

3n.m

135°

White/Yellow

370426-370428

All-round light

CXH6-101P

3n.m

360°

Red/Green/White
