The scope of application
Applied to daylight signal communication between the ships.
Products characteristic

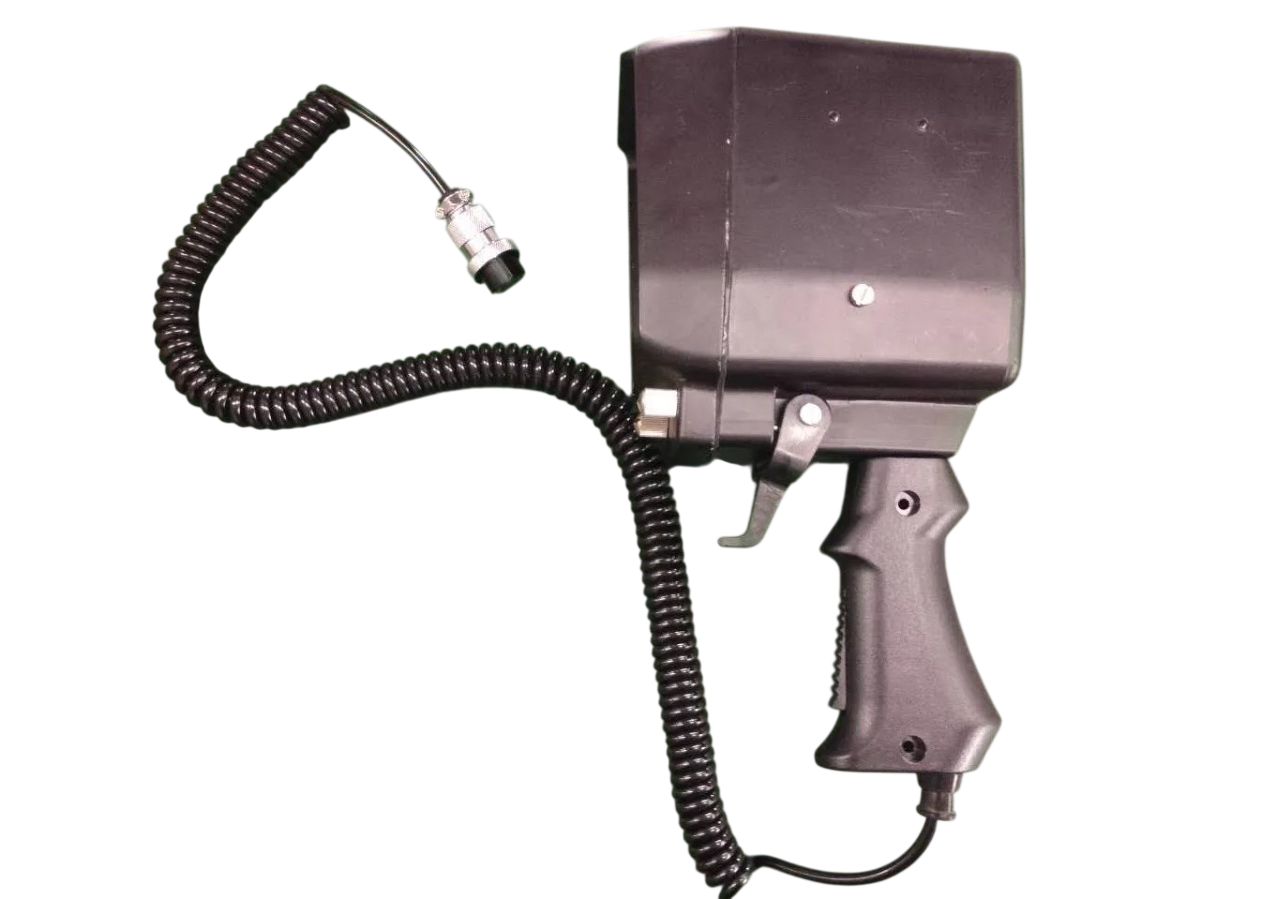

1. With good quality cast aluminum shell and mechanical flash device.
2. Light, convenient to operate and bring.
|
Model |
CXD8 |
|
Voltage |
24V |
|
Wattage |
60W |
|
Lamp holder |
G6.35 |
|
Light intensity |
60cd |
|
Beam Angle |
6° |
|
Telescope visual angle |
3° |
|
Visibility |
2N.M |
|
Plug |
4 Pin 25M-4A |
|
Protection class |
IP44 |
|
Cable outside diameter |
Φ9.5 |
|
Name |
Controller |
|
Input voltage |
AC 110V/60Hz / 220V/50Hz/60Hz |
|
Output voltage |
DC 12V/24V |
|
Capacity |
7Ah |
|
Operating temperature |
-25℃ ~ 45℃ |
|
Socket |
4 Pole 25M-4B / 3 Pole 25M-4B |
|
Protection class |
IP20 |
CXD8-CDX
Charger
Input voltage: AC110V/60Hz, AC220V/50Hz/60Hz
Output voltage: DC24V, DC12V
Capacity: 7Ah
Temperature: -25°C ~45°C
Socket: Four pin 25M-4B
BIP Protection class: IP20
Weight: 2.53kg
