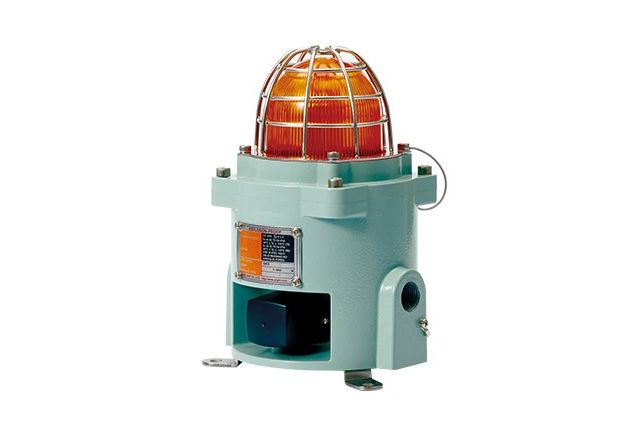

Ø92mm ATEX, IECEx, CE and KC Marked Explosion Proof LED Signal/ Warning Light and Electric Sounder Combination/ ATEX Beacon Sounder
Flame proof LED signal light that features steady/flashing, strobe, and simulated revolving light functions in one unit
- Explosion proof, multifunctional, and compact LED signal light designed for use in explosive gas environments with Ex d Ⅱ C rating
- Features excellent shock and vibration resistance, maintenance significantly reduced with long-lasting LED light source
- A variety of sound selections between warning sounds, alarm sounds, melodies and voice messages to fit your sophisticated application needs
- Features superior durability with aluminum housing
- Fully enclosed structure with protection rating of IP66
- Housing standard color: Red, MUNSELL No. 7.5BG 7/2
- Cable Entry: 1/2″ NPT
- Sound Volume: Max. 110dB at 1m
- Flashing rate(LF type): 60-80/min.
- Strobe rate(LR type) : 70~80/min.
- Simulated revolving rate(LR type) : 120~140RPM
- Materials : Lens-PC, Inner lens-Tempered glass, Bracket-SUS304, Housing-Al
- Certificates : ATEX, IECEx, KCs
- Protection rating : ATEX -
II 2G Ex d IIC T5/ T6, IP66
IECEx, KCs - Ex d IIC T5/ T6, IP66 - Ambient operating temperature : -40℃ ≤ Tamb ≤ +60℃
-40℃ ≤ Tamb ≤ +50℃
Brand:
QLIGHT
Απόχρωση:
- AMBER
- RED
Τάση:
- 110V-220V
- 12-24V DC
Product Specifications
| Model number | Voltage | Power consumption | Current | Sound pattern and Volume | Certificates | Weight | Color |
|---|---|---|---|---|---|---|---|
| QNES | DC12V~24V | Max. 23W | Max. 1.872A | · WS-5 Warning sounds : Max.110dB · WP-5 Special warning sounds : Max.110dB · WM-5 Melodies : Max.105dB · WA-5 Alarms : Max.105dB · WV-5 Customizable voices : Max.103dB |
   |
3.15kg |  R-Red A-Amber G-Green B-Blue |
| AC120V~230V | Max. 43 |
